CGS - Digital Noise

The CGS Digital Noise module is a psuedo random noise source based on clocking a set of chained registers at high speed, and using xor gates to feedback select bits to the input. I bought the PCB from Ken Stone of CGS. The front panel is from Bridechamber.com.

CGS - Digital Noise - Front view

Front View

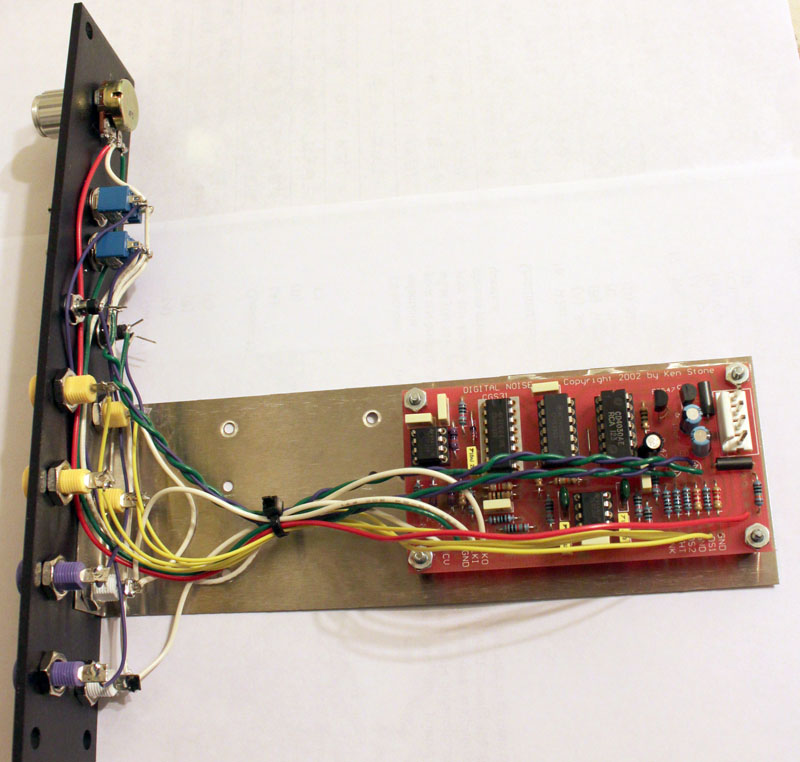

CGS - Digital Noise - Back view

Back View
